Parallel measuring of up to 4 particle fraction with only one instrument

With the dust analyser EasyPM dust fractions for PM10, PM2.5, PM1 and TSP can be measured parallel
with only one instrument.

The analyser is particularly suitable for application in indoor or outdoor air quality monitoring.

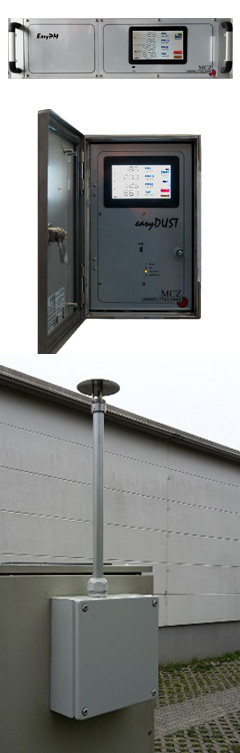

The analyser is available as 19“ rack mount system, outdoor housing, or in combination with a CAMS ( Compact Air Monitoring System) as smaller sensor unit integrtaed into the CAMS. All necessary equipment like, pump, heated sampling line, sampling head etc. is coming with the instrument.

A number of possible options are to ensure the use of the analyser EasyPM for many application.

Highlights

• For parallel measuring of up to 4 particle fraction
• Ranges in μg/m³ or mg/m³
• RS232 interface
• 19" rack or table housing
• Easy handling
• Integrated pump

Optional

• Analogue Output: 0-10V
• Alarm contacts
